Picnic Table Plans (Page Three)








Picnic Table Plans Material/Cut List



A- (Qty 4) - 2X4 - 36"



B- (Qty 2) - 2X4 - 26 1/2"



C- (Qty 2) - 2X4 - 58"



D- (Qty 9) - 2X6 - 72"



E- (Qty 6) - 2X4 - 10"



F- (Qty 3) - 2X4 - 26 1/2"



G- (Qty 2) - 2X4 - 29"




Measure and cut D and E to size, see pictures below. These parts will make the bench for the picnic table. Assemble as shown in picture below. Pre-drill holes and screw in 2 1/2" deck screws through E and into D, countersink screws, see details below.

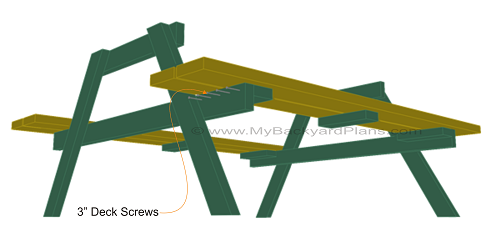

Next install it to the the sides of the picnic table as shown in picture below. Pre-drill holes and screw 3" deck screws through C and into E, see details below.



Repeat the steps for the opposite side.





Picnic Table - Part D








Picnic Table - Part E












Picnic Table Plans Bench Assembly




Picnic Table Bench Details
