Picnic Table Plans (Page Four)

Picnic Table Plans Material/Cut List

A- (Qty 4) - 2X4 - 36"

B- (Qty 2) - 2X4 - 26 1/2"

C- (Qty 2) - 2X4 - 58"

D- (Qty 9) - 2X6 - 72"

E- (Qty 6) - 2X4 - 10"

F- (Qty 3) - 2X4 - 26 1/2"

G- (Qty 2) - 2X4 - 29"

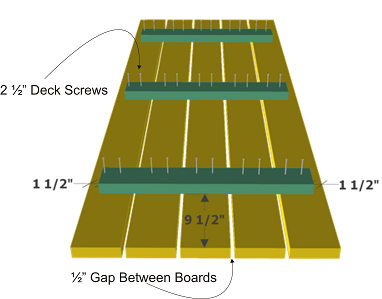

Measure and cut D and F, see picture below. These parts will make the table top. Assemble parts as shown below, making sure everything is straight and squared. Pre-drill holes and use 2 1/2" deck screws, screw through F and into D, countersink screws. See details below.

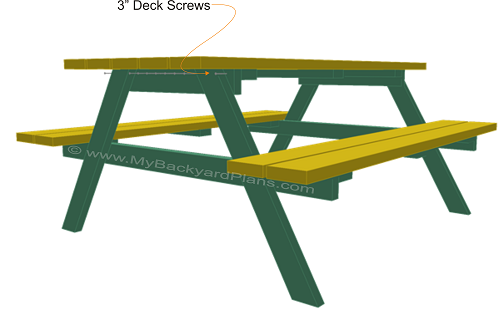

Next install the table top to the sides. Pre-drill holes and screw in 3" deck screws through B and into F, countersink screws. See details below.
